Another successful Derbyshire System project

We have reported before examples of entrances cast in situ, using an entrance former (see here). This has become known as the Derbyshire System after the first project using this idea. This is another example in Middleton-by-Wirksworth, also in Derbyshire, showing a little more of what is involved.

In Jack Roper's own words:
"My friend Rob and his old man came to create the nest spaces. They chiselled the mortar away to eventually slide the stones out of the wall, exposing the cavity. Some of the stones spanned the whole depth of the wall creating a hole directly into the loft space. They made four holes, two each side of the flue at the apex of the gable. We worked on a general rule of 200mm x 200mm nest space for each hole.

After positioning the concave, setting it in place using a spat of mortar, we slipped a length of 65mm plastic tube from the loft to the edge of the nest space so that we could insert a speaker / camera if necessary. I've stuffed an old t-shirt into the tube whilst I get some plastic ends to cap them off properly.

They then replaced the necessary stones, positioned the entrance former and mortared it all in place. In all it took four hours, including cleaning up the mess below!"

Stones and rubble removed from the cavity
2 completed entrances on the right

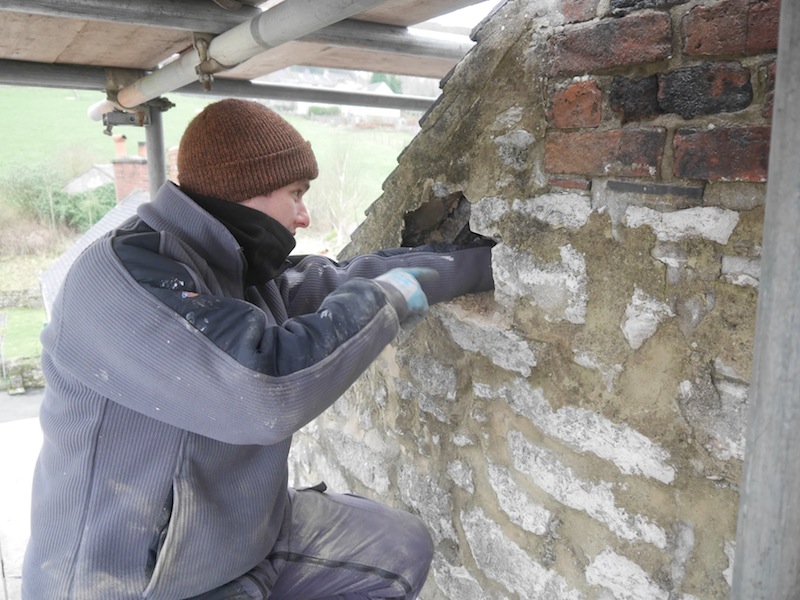

Rob working on one of the holes on the left
Finished entrance on the left

Hand-made concaves out of fibre-board and filler

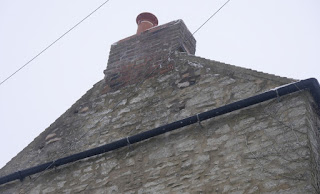

4 completed entrances
